Description
Designed specifically for FTC, this light high speed servo is fast, light and powerful.
It's a programable dual mode servo that has feedback via an analog absolute position fourth wire.
Construction
Steel and Titanium gear train with Aluminium drivetrain
Motor Type
Brushless Motor
Max Travel
180 degrees (or continuous if programmed)
Weight
32g
Torque
| 8kg/cm | 4.8v |
| 9kg/cm | 6.0v |
| 11kg/cm | 8.4v |
Speed
| 0.100 sec / 60 degrees | 4.8v |
| 0.082 sec / 60 degrees | 6.0v |
| 0.060 sec / 60 degrees | 8.4v |
Mounting Options
The BBR Small Servo mount can be used to mount this servo.

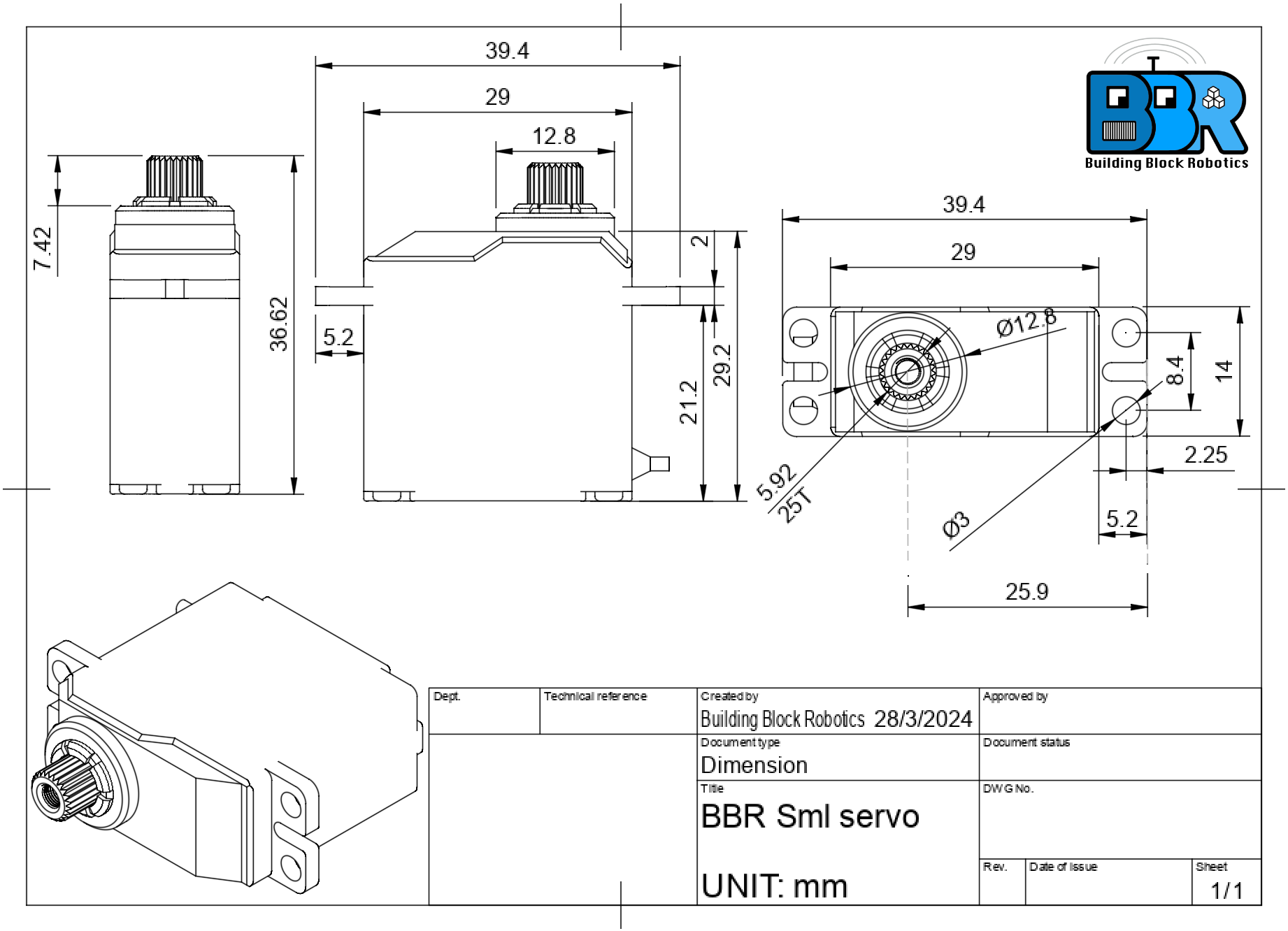

Step File
Firmware
Change between Continuous Rotation and Servo Mode - Download
Software for updating the servo (with programmer) - Download
