Description

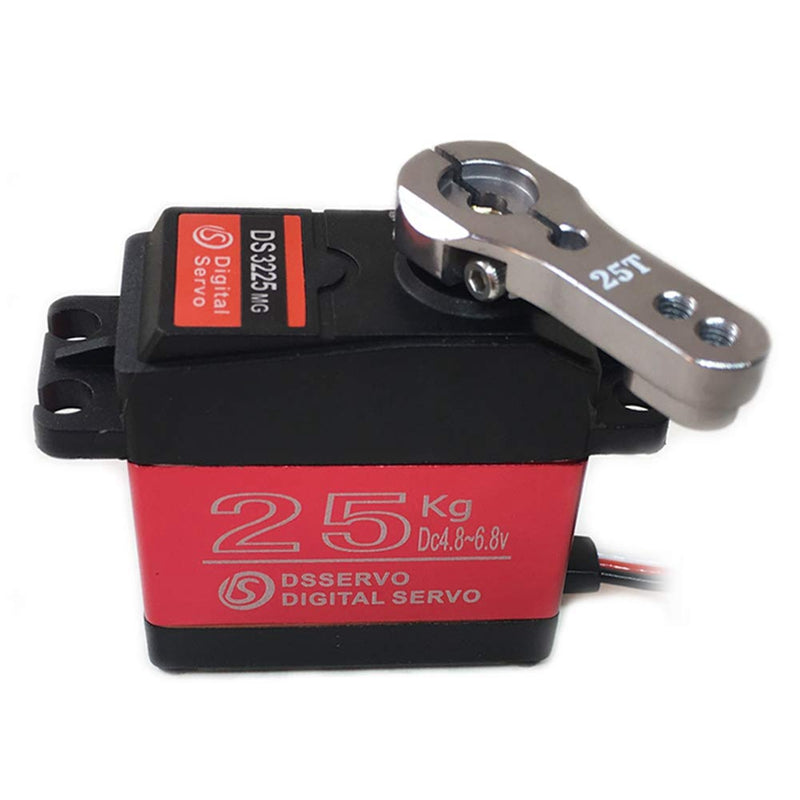

Strong servo that is perfect for higher load operations on FTC style robots.
Specs:
Operating voltage range: 4.8 - 6.8V
Operating speed ( 5.0V ): 0.15 sec/60 degree
Operating speed ( 6.8V ): 0.13 sec/60 degree
Stall torque ( 5.0V ): 21kg/cm
Stall torque ( 6.8V ): 25kg/cm
Control Specification:
Control System: PWM(Pulse width modification)
Pulse width range: 500~2500 usec
Neutral position: 1500usec
Running degree: 270° (when 500~2500 usec)
Dead band width: 3 usec
Operating frequency: 50-330Hz
Rotating direction: Counterclockwise (when 500~2500 usec)
Mechanical Specification:
Gear ratio: 275
Bearing: Double bearing
Motor: 3-pole(s)
